New Pre-K – 12 School

Completion Date: August 2016

Overview

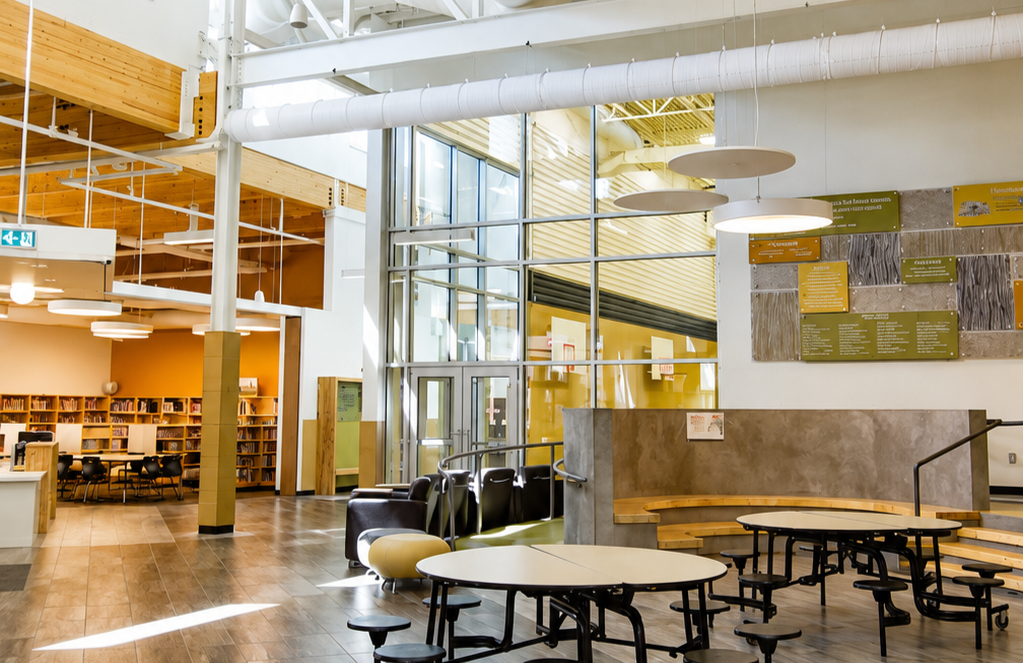

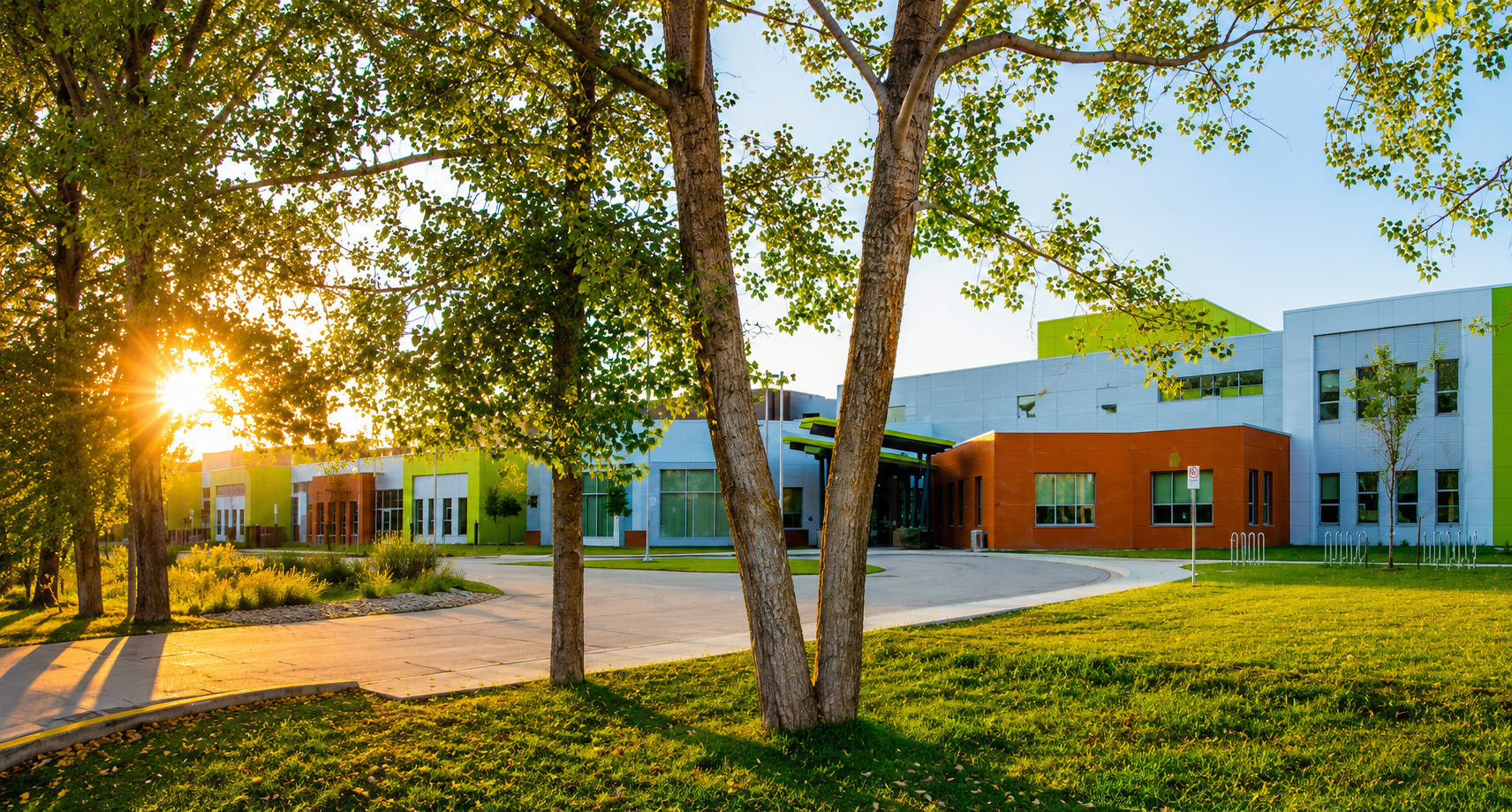

Prakash Consulting joined the project team in 2013 to provide structural engineering services for the replacement of the existing school facility, which had reached the end of its service life. The new state-of-the-art educational facility was designed to accommodate students from Kindergarten through Grade 12 and includes a full gymnasium, industrial shop spaces, and multi-purpose community areas.

The project focused on delivering a modern, durable, and efficient learning environment that would support both educational and community functions for decades to come.

Design Approach

The structural design emphasized material efficiency, durability, and construction speed to meet the project schedule and long-term performance goals.

Site conditions were ideally suited for drilled cast-in-place concrete piles, providing a stable and economical foundation system. Cast-in-place concrete foundations and main floor slabs were integrated with an in-slab heating system to enhance energy efficiency, occupant comfort, and durability.

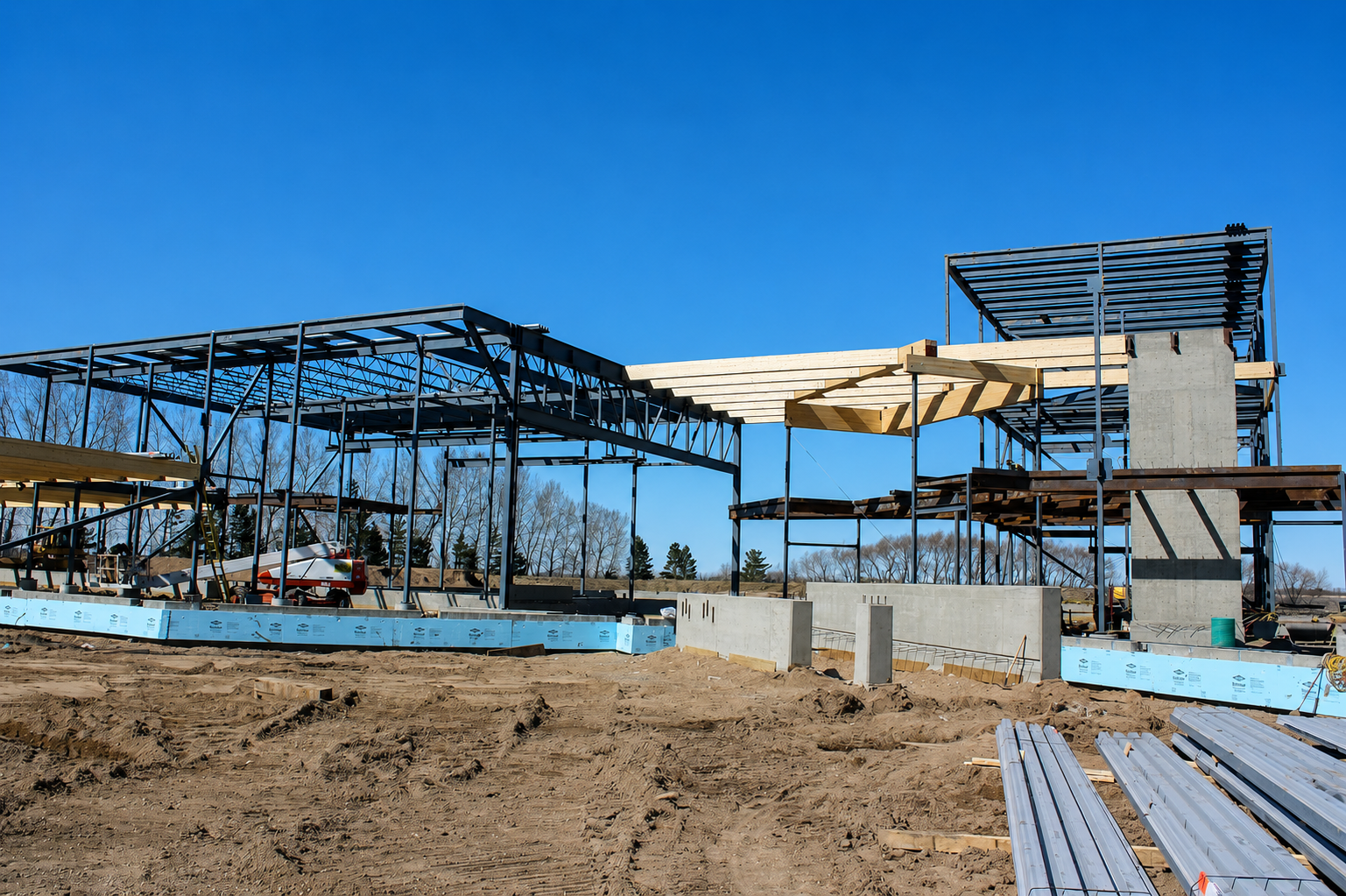

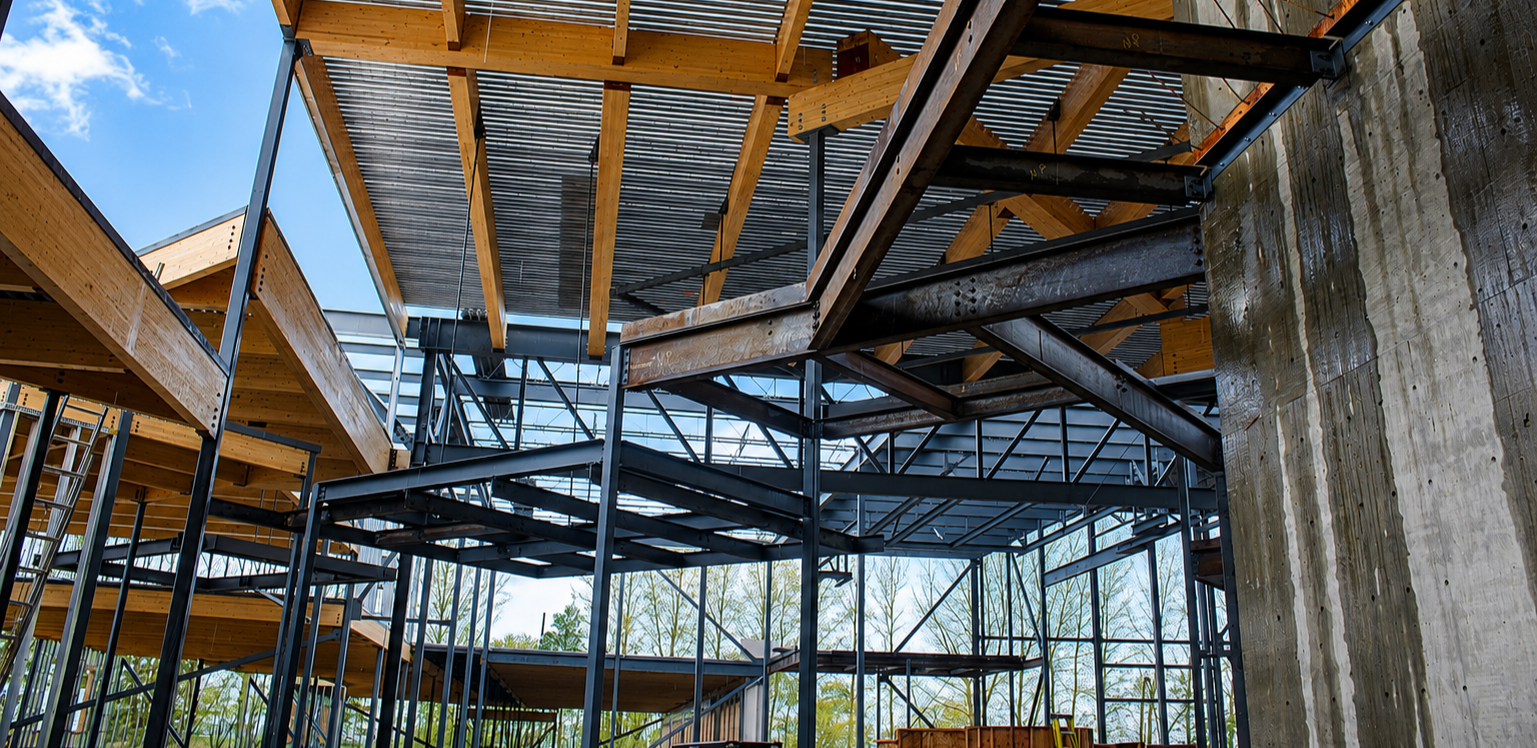

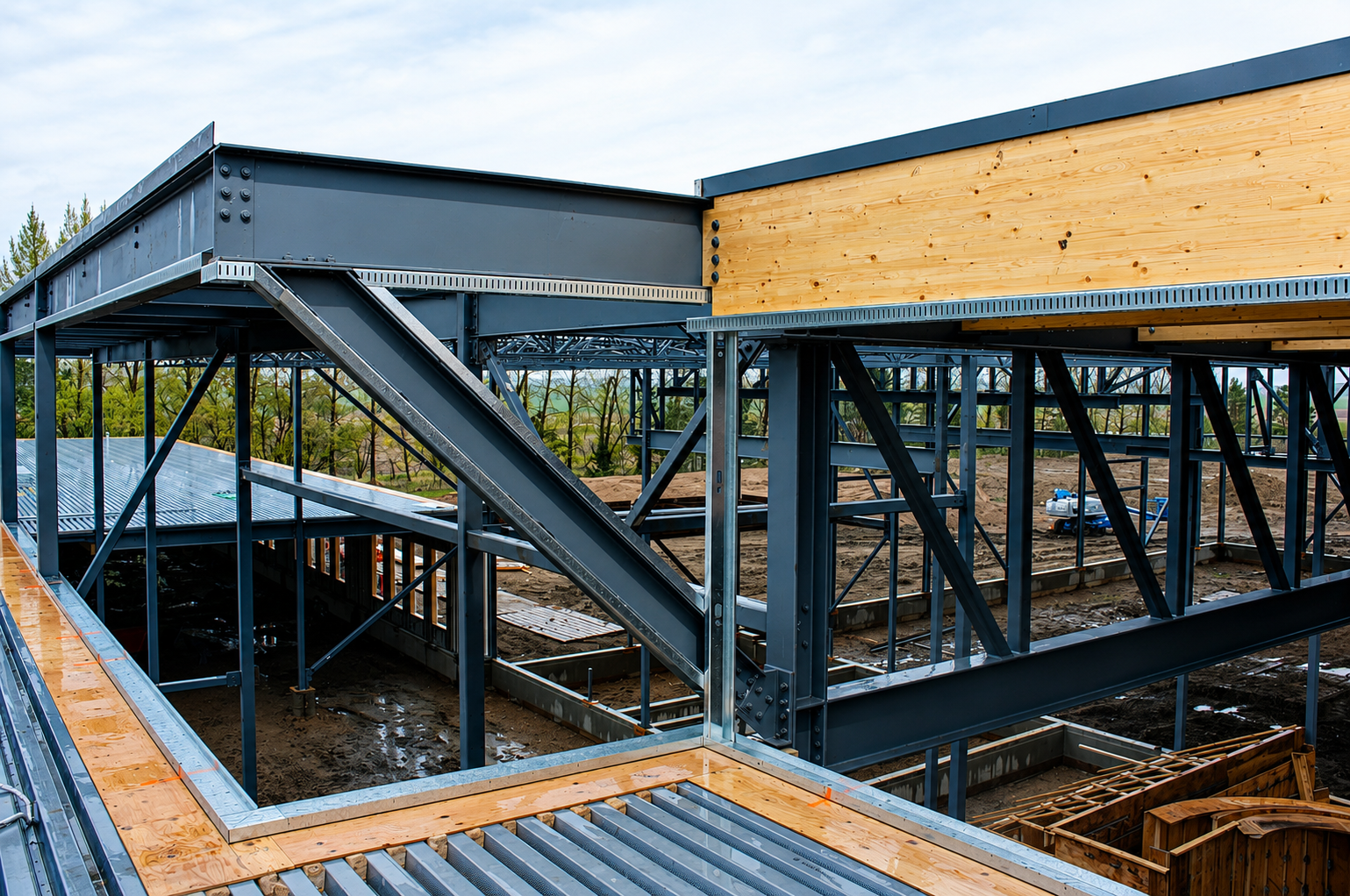

The superstructure incorporated a hybrid structural system consisting of exposed glulam roof beams, structural steel framing, and steel joists to efficiently achieve long-span spaces throughout the facility. A composite steel floor system with cast concrete topping was utilized to provide enhanced vibration and deflection control, fire resistance, and long-term durability.

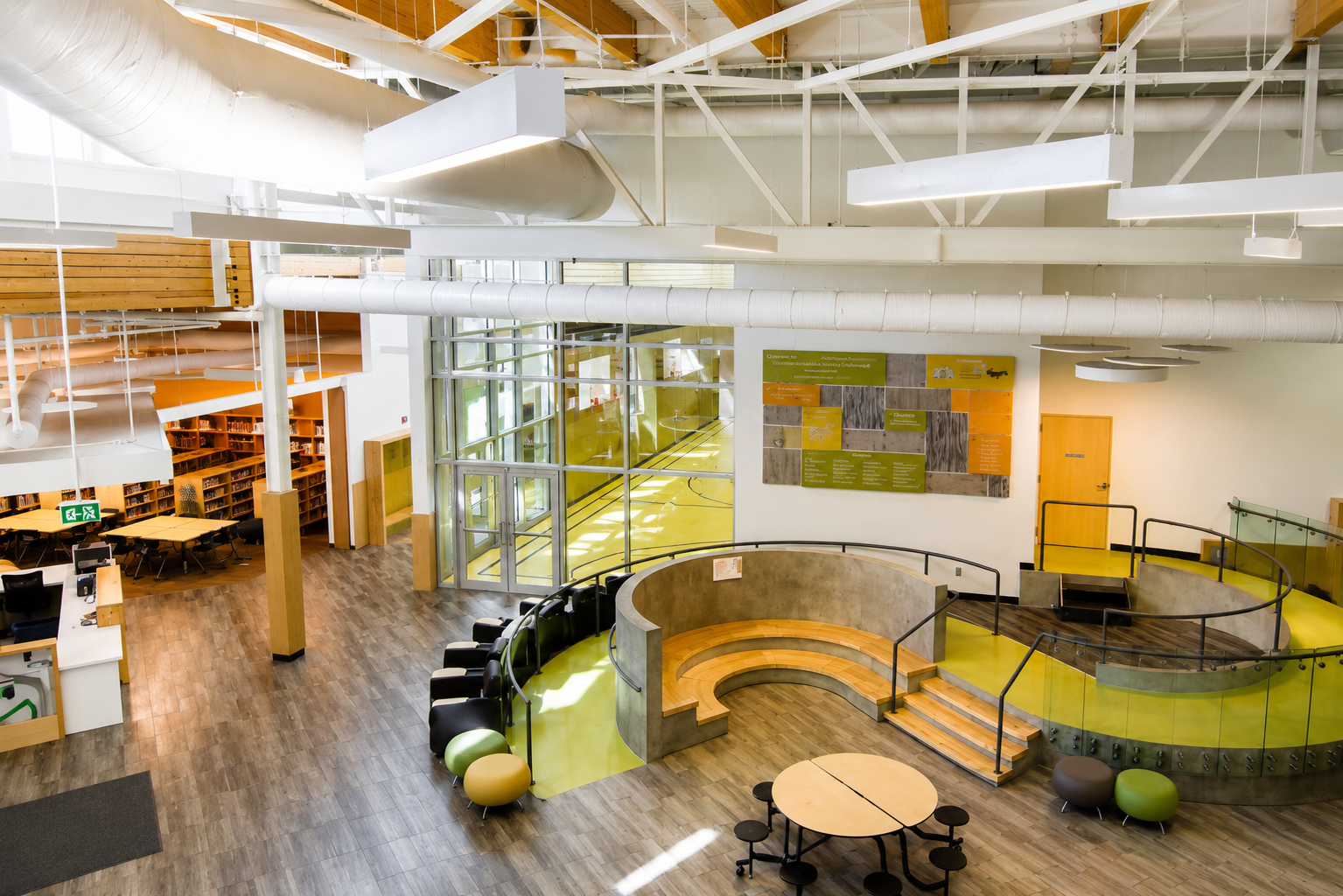

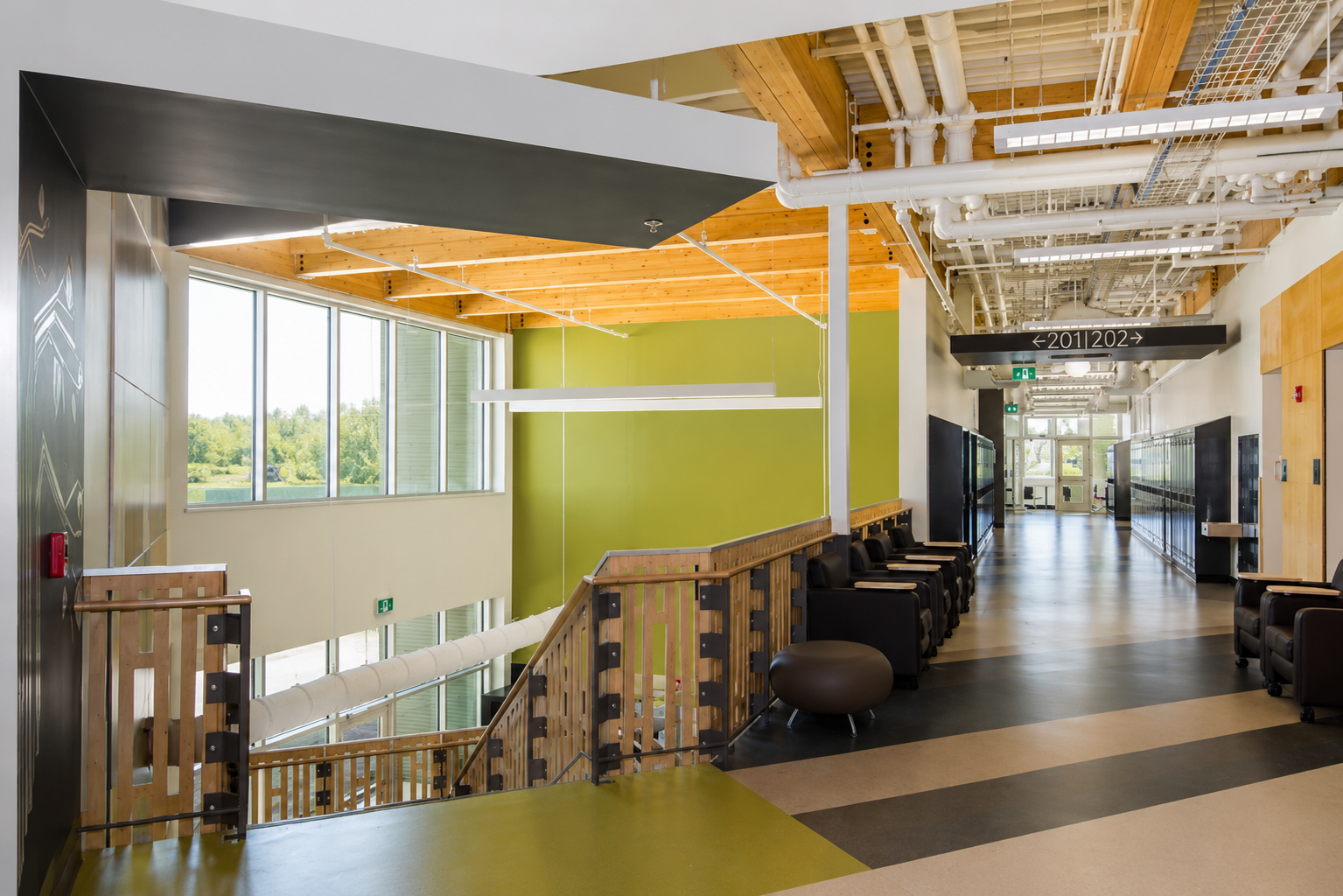

The combination of exposed timber and steel elements contributed to both the architectural character and structural performance of the building while supporting the functional requirements of educational, recreational, and community-use spaces.

Key Personnel

• Martin Kiffiak, P. Eng.

• Nicholas Pinel, A.Sc.T.
